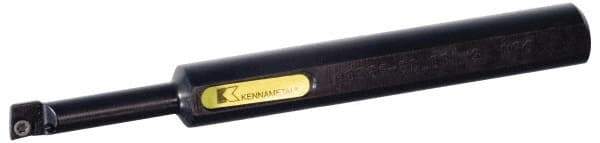

Kennametal - 5.28mm Min Bore Diam, 60mm OAL, 12mm Shank Diam, E-SCLD Indexable Boring Bar - 22.2mm Max Bore Depth, CD.. Insert, Screw Holding Method
Item #: 01583194
Brand: Kennametal
Model #: 1930406
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Toolholder Style | E-SCLD |
Series | Screw-On |
Minimum Bore Diameter (mm) | 5.28 |
Minimum Bore Diameter (Decimal Inch) | 0.2079 |
Hand of Holder | Left Hand |
Maximum Bore Depth (mm) | 22.20 |
Overall Length (mm) | 60.00 |
Overall Length (Decimal Inch) | 2.3622 |
Shank Diameter (mm) | 12.00 |
Shank Diameter (Decimal Inch) | 0.4720 |
Insert Compatibility | CD.. |
Through Coolant | Yes |
Multi-Use Tool | No |
Insert Holding Method | Screw |
Rake | Positive |
Lead Angle | 5 |
Center to Cutting Edge (mm) | 2.64 |
Insert Thickness (Decimal Inch) | 0.0400 |
Insert Inscribed Circle (Inch) | 5/32 |
Rake Angle | 5 |
Coolant Hole Diameter (mm) | 3.18 |
Coolant Hole Diameter (Decimal Inch) | 0.1252 |
Complete Insert Compatibility | CD.. S4T002 |
Toolholder Material | Carbide |
