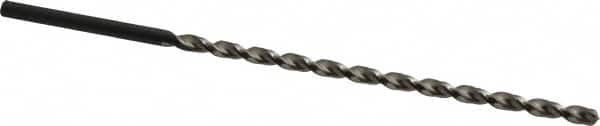

Extra Length Drill Bit: 0.25″ Dia, 130 °, High Speed Steel Uncoated, Parabolic Flute, Straight-Cylindrical Shank, Series A1622
Item #: 01468164
Brand: Walter-Titex
Model #: 5062540
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Letter) | E |
| Overall Length (Inch) | 8-15/32 |
| Flute Length (Inch) | 5-29/32 |
| Tool Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | A1622 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Blind Hole; Stack Drilling |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm; -0.00055 to 0.00000 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N |
| Secondary Workpiece Material | Iron; Nickel; Cobalt; Titanium Alloy |
| Secondary Workpiece Material Code | S; M; O |
| Standards | ISO; DIN 1869-I; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Decimal Inch) | 1/4 |
| Shank Length (Decimal Inch) | 2.5590 |
| Shank Length (mm) | 65.00 |
| Flute By Diameter Ratio | 16xD |
| Maximum Drilling Depth (Decimal Inch) | 5.4720 |
| Maximum Drilling Depth (mm) | 139.00 |
| Specification Designation | DIN |
| Specification Number | DIN 1869-I |
 | |
| MSC Part # | 01468164 |
| Mfr Part # | 5062540 |
| Big Book Page # | 94 |
| Country of OriginCountry of Origin is subject to change | France |
