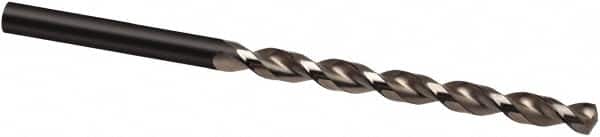

Taper Length Drill Bit: 0.0945″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 336
Item #: 01441468
Brand: Guhring
Model #: 9003360024000
Product Specifications
| Drill Bit Size (mm) | 2.40 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 62.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 95.00 |
| Shank Diameter (mm) | 2.40 |
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 336 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.2990 |
| Maximum Drilling Depth (mm) | 58.40 |
| Shank Length (mm) | 33.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-35 |
