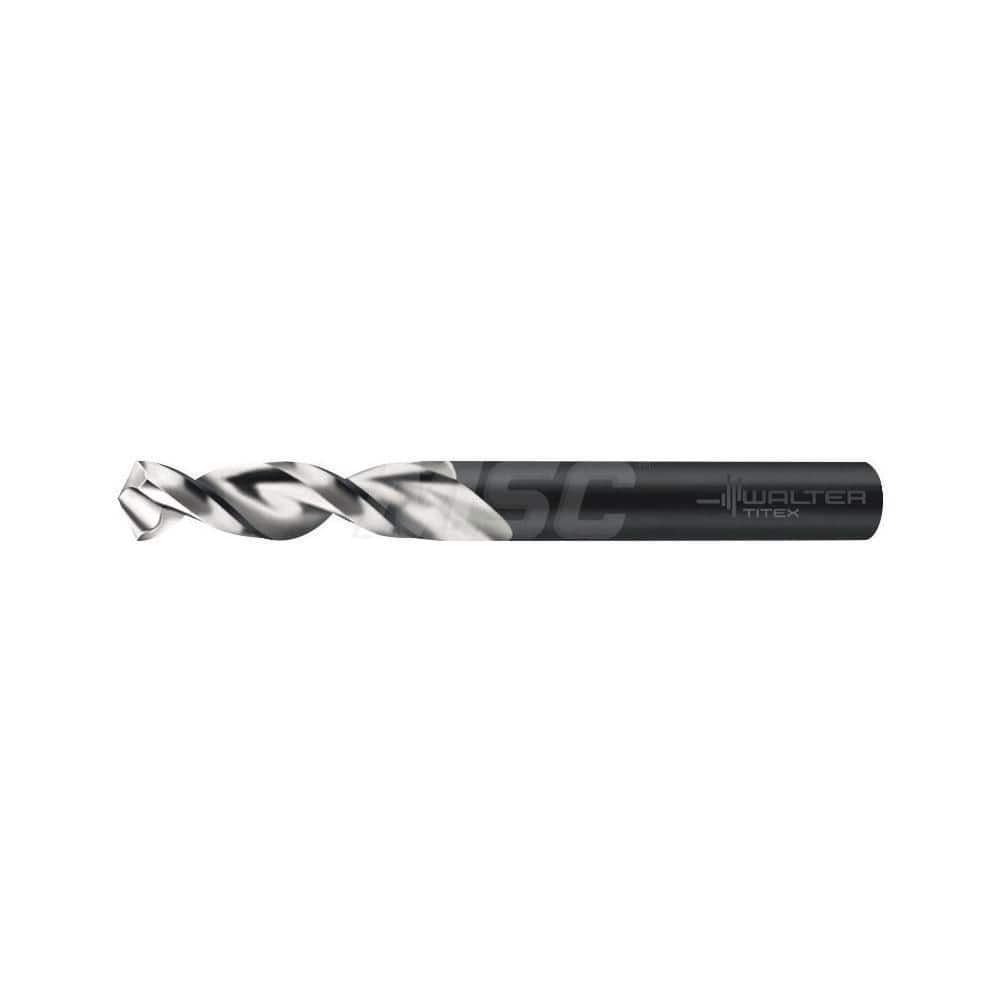

Screw Machine Length Drill Bit: 0.4844″ Dia, 130 °, Cobalt;Vanadium High Speed Steel - Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1148
Item #: 01420314
Brand: Walter-Titex
Model #: 5057189
Product Specifications
| Drill Bit Size (Inch) | 31/64 |
| Tool Material | Vanadium High Speed Steel; Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4840 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Overall Length (Inch) | 4-1/32 |
| Shank Diameter (mm) | 12.30 |
| Series | A1148 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.5000 |
| Maximum Drilling Depth (mm) | 37.00 |
| Shank Length (Decimal Inch) | 2.0200 |
| Shank Length (mm) | 51.00 |
| Drill Point Length (mm) | 2.87 |
| Drill Point Length (Decimal Inch) | 0.1130 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | -0.00106 to 0.00000 in; -0.022 to 0.000 mm |
| Standards | ISO; DIN |
| Flute Length (Inch) | 2 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Designation | BS; DIN |
