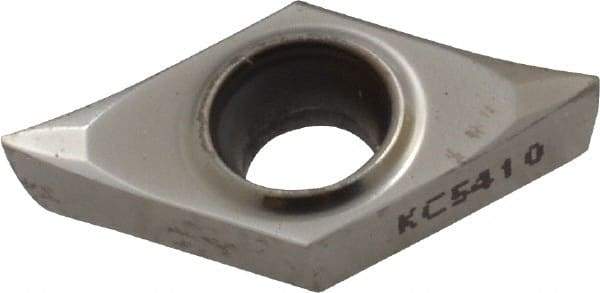

Kennametal - DCGT32.50.5 HP Grade KC5410 Carbide Turning Insert - TiB2 Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.0079" Corner Radius
Item #: 01389659
Brand: Kennametal
Model #: 1560699
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KC5410 |
| Coating | TiB2 |
| Material Grade | C3/C4 |
| Chip Breaker | HP |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
