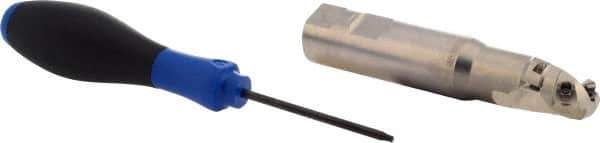

Seco - 1" Cut Diam, 1.02" Max Depth of Cut, 1" Shank Diam, 5.02" OAL, Indexable Ball Nose End Mill - 2-3/4" Head Length, R218.19 Toolholder, 218.19 125, SPMX 0903 Insert
Item #: 01352640
Brand: Seco
Model #: 87575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.0200 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.19 125; SPMX 0903 |
| Toolholder Style | R218.19 |
| Overall Length (Decimal Inch) | 5.0200 |
| Toolholder Material | Carbide |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 2.7500 |
| Number of Side Inserts Used on Toolholder | 2 |
