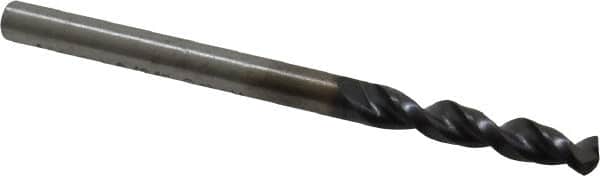

Accupro - 9/64" 130° Parabolic Flute Cobalt Screw Machine Drill Bit - TiAlN Finish, Right Hand Cut, 0.787" Flute Length, 2.047" OAL, Split Point, Straight Shank
Item #: 01348671
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Drill Bit Size (Inch) | 9/64 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 2.0470 |
| Point Type | Split Point |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Material Grade | M35 |
