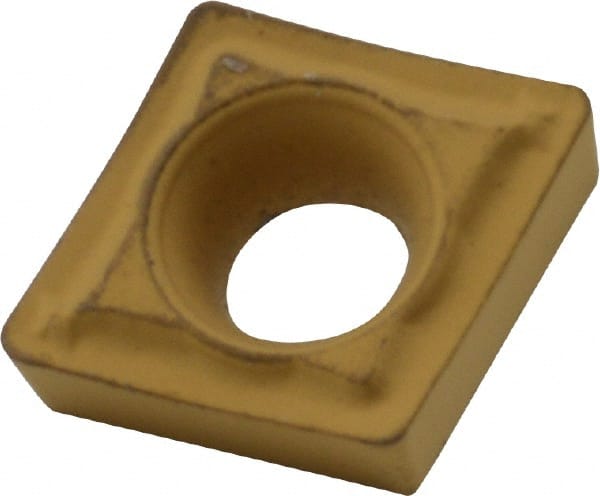

CCMT 2-1-SM IC9250 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 6.3mm Long, 1/4″ Inscribed Circle, 1/64″ Corner Radius, 80° Diamond
Item #: 01337971
Brand: Iscar
Model #: 5507292
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 2-1 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC9250 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2480 |
| Insert Length (mm) | 6.30 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C5; C6; C7 |
| Chip Breaker | SM |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 01337971 |
| Mfr Part # | 5507292 |
