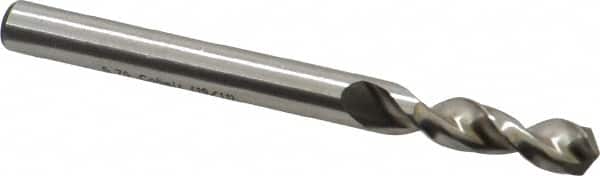

Accupro - 5.75mm 130° Parabolic Flute Cobalt Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Split Point, Straight Shank
Item #: 01332261
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2264 |
| Drill Bit Size (mm) | 5.75 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Point Type | Split Point |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Material Grade | M35 |
