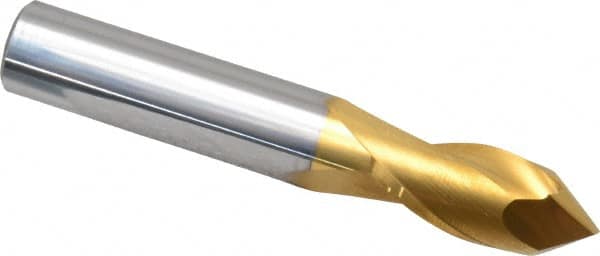

Melin Tool - 7/16" Diam, 1" LOC, 2 Flute, 90° Point Angle, Solid Carbide Drill Mill - TiN Finish, 2-3/4" OAL, 7/16" Shank Diam
Item #: 01319631
Brand: Melin Tool
Model #: 26088
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Shank Diameter (Inch) | 7/16 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Point Angle | 90 |
| Number of Flutes | 2 |
| Finish/Coating | TiN |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
