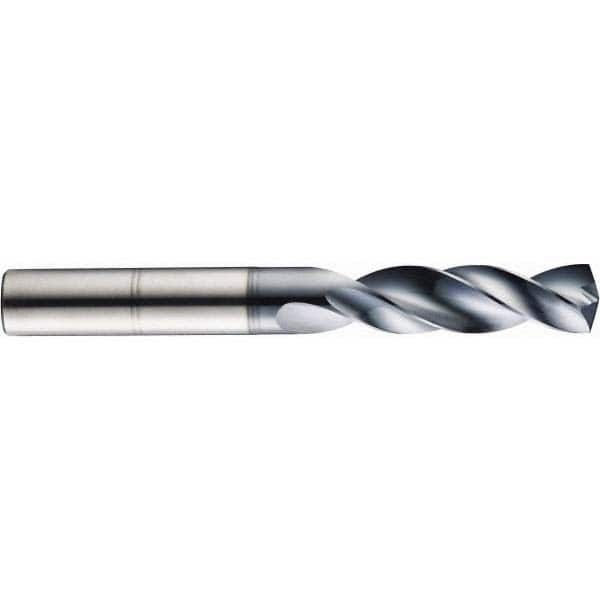

SGS - #40 145° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 58983271
Brand: SGS
Model #: 51263
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0980 |
| Drill Bit Size (Wire) | #40 |
| Drill Point Angle | 145 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 9/16 |
| Flute Length (Decimal Inch) | 0.5625 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Maximum Drilling Depth (Decimal Inch) | 0.5000 |
| Maximum Drilling Depth (Inch) | 1/2 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 1.2500 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.00008 to +0.00047 |
| Drill Tip Finish/Coating | None |
| Number of Margins | 2.000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Material Grade | Micrograin |
| Series/List | 135 |
| Length Type | Regular |
