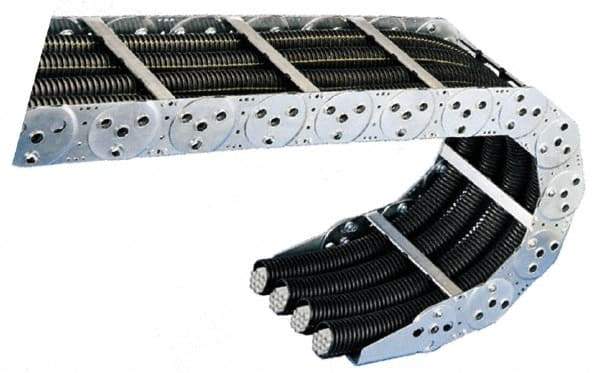

KabelSchlepp - 1 Ft. Long, Steel, Fixed Open Cable and Hose Carrier - 11.31 Inch Inside Width x 1.81 Inch Inside Height, 12-1/4 Inch Outside Width x 2.68 Inch Outside Height, 6.69 Inch Bend Radius
Item #: 01278837
Brand: KabelSchlepp
Model #: 9S170126RLX1FT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Access Type | Fixed Open |
| Overall Length (Feet) | 1 |
| Inside Height (Decimal Inch) | 1.8100 |
| Inside Height (mm) | 46 |
| Inside Width (Decimal Inch) | 11.3100 |
| Outside Height (mm) | 68 |
| Outside Height (Decimal Inch) | 2.6800 |
| Outside Width (Decimal Inch) | 12-1/4 |
| Bend Radius (mm) | 170 |
| Bend Radius (Decimal Inch) | 6.6900 |
| Number of Sections | 35 |
| Link to Link Pitch (mm) | 95 |
| Link to Link Pitch (Decimal Inch) | 3.7400 |
| Material | Steel |
