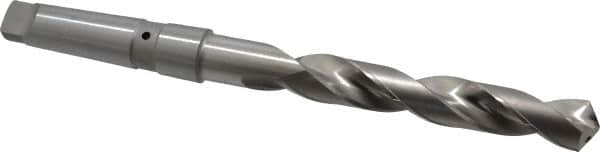

Value Collection - 1-1/16", 4MT 118° Point Cobalt Taper Shank Drill Bit - Bright Finish, 7-1/4" Flute Length, 12-7/8" OAL, Spiral Flute, Through Coolant
Item #: 01277680
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 1-1/16 |
| Drill Bit Size (Decimal Inch) | 1.0625 |
| Drill Point Angle | 118 |
| Shank Taper Designation | 4MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Overall Length (Inch) | 12-7/8 |
| Flute Length (Inch) | 7-1/4 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Web Thinning | N-Thinned |
| Material Grade | M35 |
| Drill Bit Grade | General Purpose |
