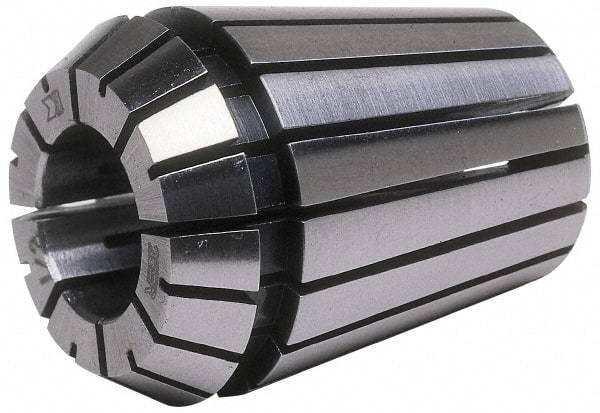

Kennametal - 2.5 to 3mm ER8 Collet - 0.0152mm TIR, 13.49mm OAL, 8.51mm Overall Diam - Exact Industrial Supply

Kennametal - 2.5 to 3mm ER8 Collet - 0.0152mm TIR, 13.49mm OAL, 8.51mm Overall Diam


Item #: 01262468
Brand: Kennametal
Model #: 1025753
Exact Tooling IR#: 04

Features and Benefits

ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
Product Specifications
Type ER Collet
Collet Series ER8
Size Range (mm) 2.50-3.00
TIR (mm) 0.0152
TIR (Decimal Inch) 0.000600
Minimum Collet Capacity (mm) 2.50
Maximum Collet Capacity (mm) 3.00
Overall Length (mm) 13.49
Overall Length (Decimal Inch) 0.5310
Overall Diameter (mm) 8.51
Overall Diameter (Decimal Inch) 0.3350
PSC Code 5136
