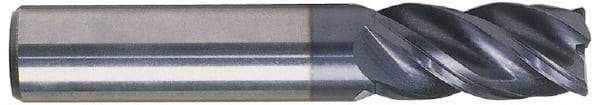

Kennametal - 3/4", 7/8" LOC, 3/4" Shank Diam, 3-1/2" OAL, 4 Flute, Solid Carbide Square End Mill - Single End, TiAlN/TiN/TiAlN Finish, Spiral Flute, Variable° Helix, Right Hand Cut, Right Hand Flute, Series HPHV
Item #: 01251511
Brand: Kennametal
Model #: 3050802
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN/TiAlN is a multi-layered coating designed to increase tool life. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN/TiN/TiAlN |
| Shank Diameter (Inch) | 3/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.003 |
| Manufacturer Grade | KC633M |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | +0.0000/-0.0005 |
| Series/List | HPHV |
