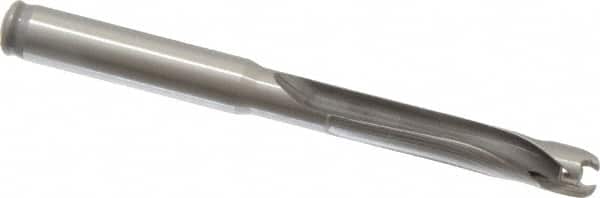

Kennametal - 8.5 to 8.99mm Diam, 5xD, 44.96mm Max Depth, 3/8" Shank Diam, 54.86mm Flute, 101.6mm OAL, Replaceable Tip Drill - KTIP03390HP Insert, G Seat Size, Series KenTIP
Item #: 01242585
Brand: Kennametal
Model #: 2250674
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Maximum Drill Depth (mm) | 44.96 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03390HP |
| Insert Seat Size | G |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0580 |
| Flute Length (mm) | 54.86 |
| Flute Length (Decimal Inch) | 2.1598 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
