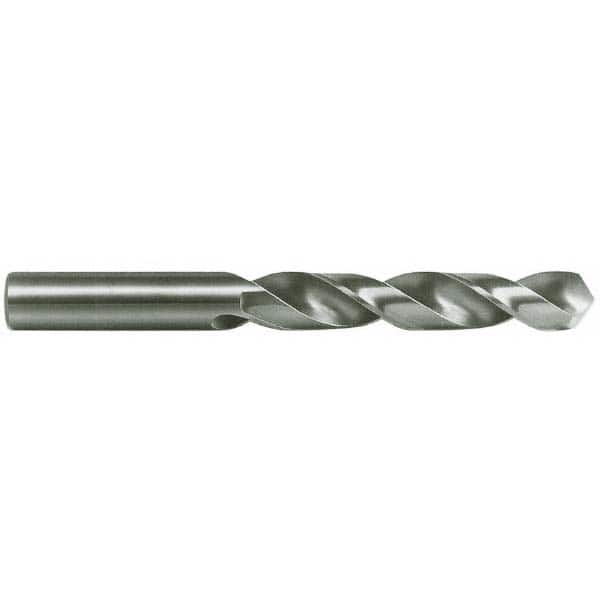

Jobber Length Drill Bit: 0.25″ Dia, 118 °, Solid Carbide Bright/Uncoated, 3.25″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 01200161
Brand: Made in USA
Model #: 450-102500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Letter) | E |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Flute Length (Decimal Inch) | 2.0000 |
| Tool Application | Drilling |
| Shank Diameter (Inch) | 1/4 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | C2 |
