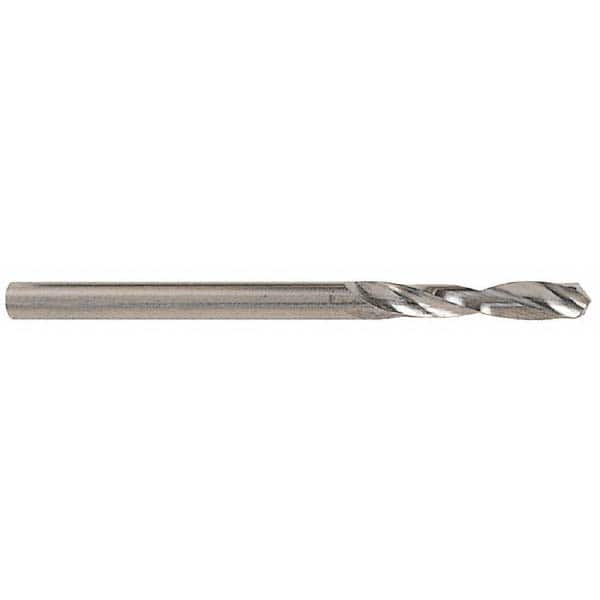

Micro Drill Bit: 0.0472″ Dia, 118 °, Solid Carbide Bright/Uncoated, 0.984″ OAL, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 50 699
Item #: 01197755
Brand: Big Kaiser
Model #: 50699-1.20
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0472 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 8.20 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Series | 50 699 |
| Overall Length (Decimal Inch) | 0.9840 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Four Facet |
| Tool Application | Through Hole Drilling; Blind Hole |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Standards | DIN 1899A |
| Shank Diameter (mm) | 1.50 |
| Flute By Diameter Ratio | 6xD |
| Material Grade | K20/30 |
| Spiral Type | Regular |
