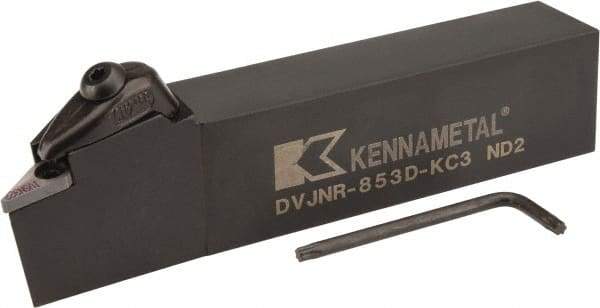

Kennametal - DVJN, Right Hand Cut, 3° Lead Angle, 1-1/4" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, VN..33. Insert Compatibility, Series Kenclamp
Item #: 01157627
Brand: Kennametal
Model #: 2504000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DVJN |
| Rake | Negative |
| Rake Angle | -9 |
| Series | Kenclamp |
| Lead Angle | 3 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VN..33. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (mm) | 36.58 |
| Head Length (Decimal Inch) | 1.4400 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
