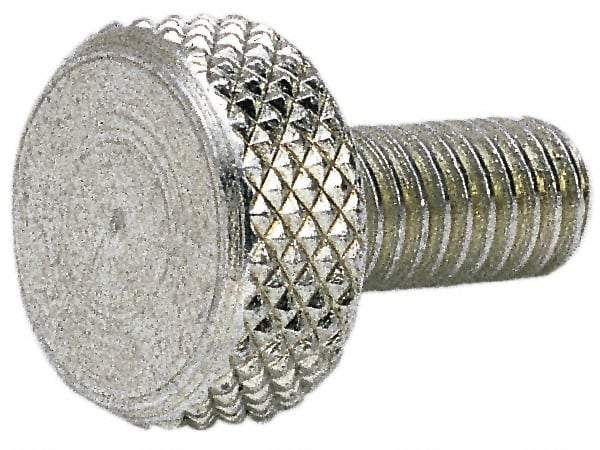

Electro Hardware - #8-32 Knurled Shoulderless Grade 303 Stainless Steel Thumb Screw - 11/16" OAL, 3/8" Head Diam x 3/16" Head Height, Uncoated
Item #: 01151935
Brand: Electro Hardware
Model #: THS3025M07F16
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | #8-32 |
| Head Type | Knurled |
| Shoulder Type | Shoulderless |
| Material | Stainless Steel |
| Material Grade | Grade 303 |
| Overall Length (Inch) | 11/16 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 0.3750 |
| Head Diameter (Inch) | 3/8 |
| Head Height (Decimal Inch) | 0.1875 |
| Head Height (Inch) | 3/16 |
| Thread Standard | UNC |
| Fastener Standard | QQ-S-763 |
| Thread Length (Inch) | 1/2 |
