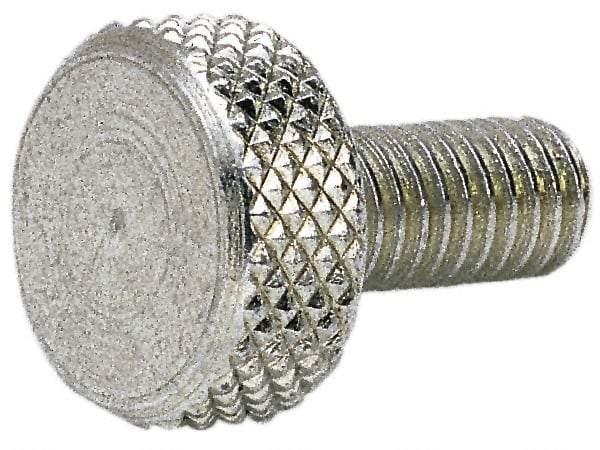

Electro Hardware - 1/4-20 Knurled Shoulderless Aluminum Thumb Screw - 1" OAL, 1/2" Head Diam x 1/4" Head Height, Uncoated
Item #: 01151554
Brand: Electro Hardware
Model #: THS3056M04F16
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Head Type | Knurled |
| Shoulder Type | Shoulderless |
| Material | Aluminum |
| Overall Length (Inch) | 1 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Diameter (Inch) | 1/2 |
| Head Height (Decimal Inch) | 0.2500 |
| Head Height (Inch) | 1/4 |
| Thread Standard | UNC |
| Fastener Standard | QQ-A-225A Comp 2; T-3 |
| Thread Length (Inch) | 3/4 |
