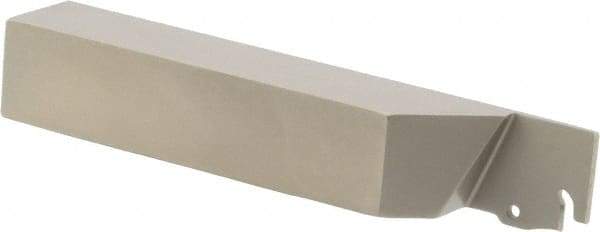

Iscar - External Thread, 1-1/8" Max Depth of Cut, 0.11" Min Groove Width, 5.905" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-GripIQ
Item #: 01113398
Brand: Iscar
Model #: 2301855
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1250 |
| Minimum Groove Width (Decimal Inch) | 0.1100 |
| Maximum Groove Width (Decimal Inch) | 0.1380 |
| Overall Length (Decimal Inch) | 5.9050 |
| Series | Tang-GripIQ |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.0700 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3.2JT; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
