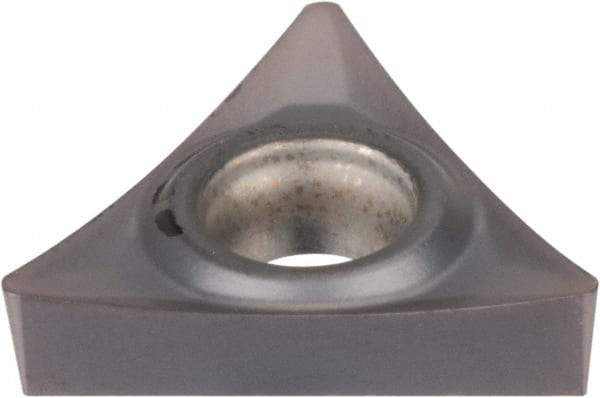

Kennametal - TCGT21.51 HP Grade KC5025 Carbide Turning Insert - TiAlN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 01046564
Brand: Kennametal
Model #: 1867031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Material Grade | C2/C6 |
| Chip Breaker | HP |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | S |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Triangle |
