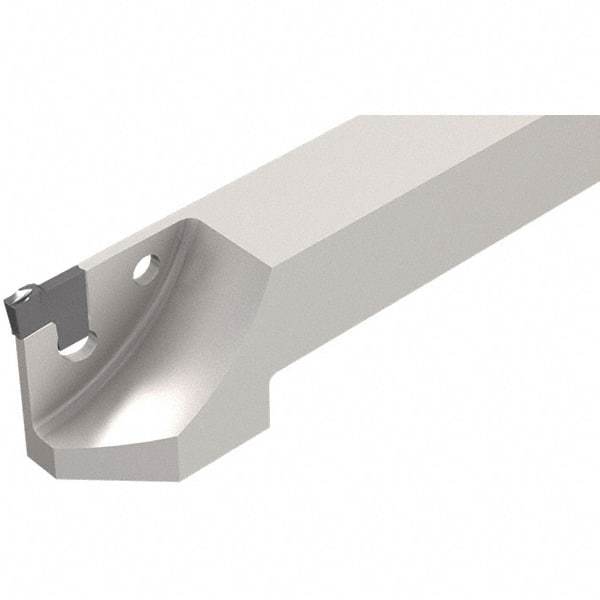

Iscar - External Thread, 1.2795" Max Depth of Cut, 3.7mm Min Groove Width, 150.5mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 01009570
Brand: Iscar
Model #: 2301858
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 32.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.2795 |
| Minimum Groove Width (Decimal Inch) | 0.1457 |
| Minimum Groove Width (mm) | 3.70 |
| Maximum Groove Width (mm) | 4.50 |
| Overall Length (Decimal Inch) | 5.9250 |
| Overall Length (mm) | 150.50 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 26.70 |
| Head Length (mm) | 23.40 |
| Shank Length (mm) | 127.10 |
| Complete Insert Compatibility | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
