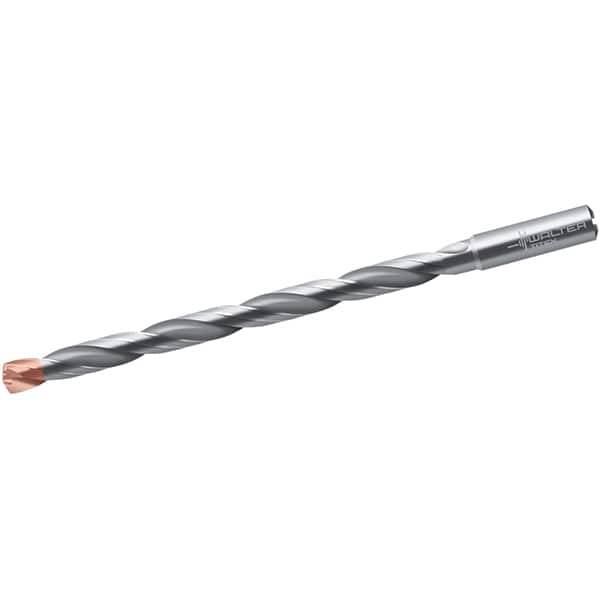

Walter-Titex - 17.5mm 140° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 81632176
Brand: Walter-Titex
Model #: 5834781
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Double point is a high-performance coatings are designed for maximum wear resistance. It has been designed to extend tool and increase the cutting speed and feed rate at the same time. Double point is a proprietary coating exclusive to Walter Titex.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 17.50 |
| Drill Bit Size (Decimal Inch) | 0.6890 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Double Point Coating |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | X-treme D |
| Flute Length (Decimal Inch) | 9.2126 |
| Flute Length (mm) | 234.00 |
| Overall Length (mm) | 285.00 |
| Overall Length (Decimal Inch) | 11.2205 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Flute Length x Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 216.00 |
| Maximum Drilling Depth (Decimal Inch) | 8.5039 |
| Shank Length (mm) | 48 |
| Shank Length (Decimal Inch) | 1.8898 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535HA |
| Material Grade | K30F |
| Series/List | A6589DPP |
