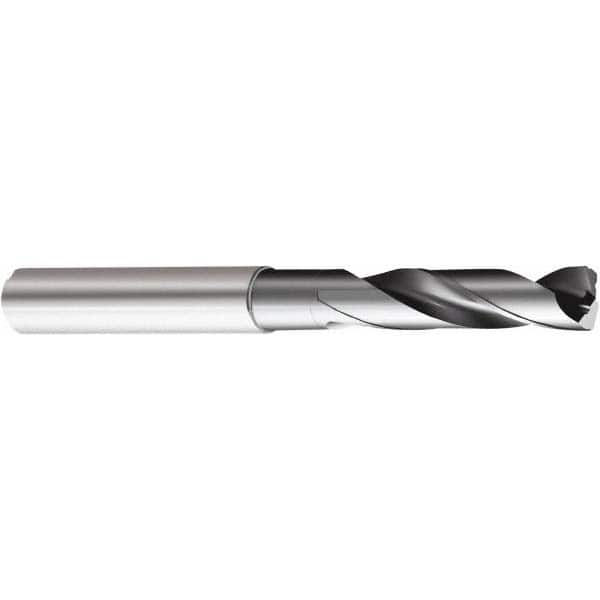

Sandvik Coromant - 5/16" 150° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 49374267
Brand: Sandvik Coromant
Model #: 6151072
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Bit Size (Inch) | 5/16 |
| Drill Point Angle | 150 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (Decimal Inch) | 1.6142 |
| Overall Length (Decimal Inch) | 3.1102 |
| Flute Length x Diameter Ratio | 3.12343xD |
| Point Type | Standard |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Specification Designation | ANSI; DIN; ISO |
| Maximum Drilling Depth (mm) | 24.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.9449 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.4173 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.00 |
| Drill Point Length (Decimal Inch) | 0.0394 |
| Drill Bit Diameter Tolerance (mm) | p7 |
| Drill Tip Finish/Coating | TiAlN |
| Number of Margins | 0.000 |
| Specification Number | DIN 1835A; DIN 6535HA; DIN 6537K |
| Series/List | CoroDrill 861 |
| Length Type | Regular |
