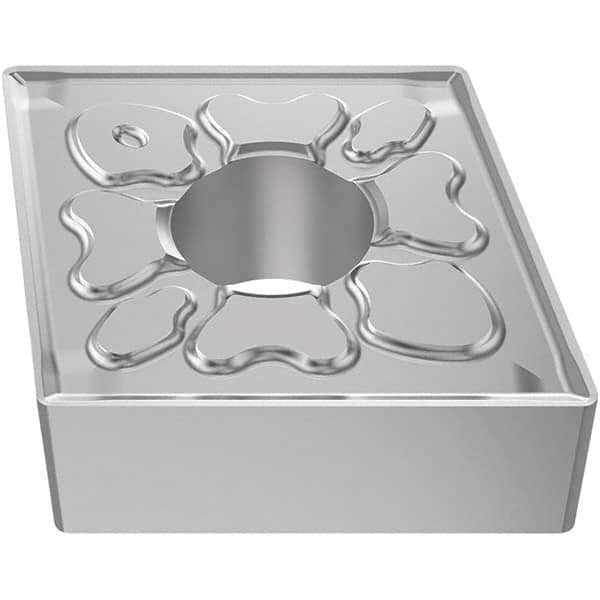

Seco - CNMG434 MF4 Grade TM2501 Carbide Turning Insert
Item #: 18609974
Brand: Seco
Model #: 03276036
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 434 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4433 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/16 |
| Manufacturer's Grade | TM2501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MF4 |
| Overall Length (Decimal Inch) | 0.5079 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| ISO Number | CNMG120416 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 30 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG434-MF4 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
