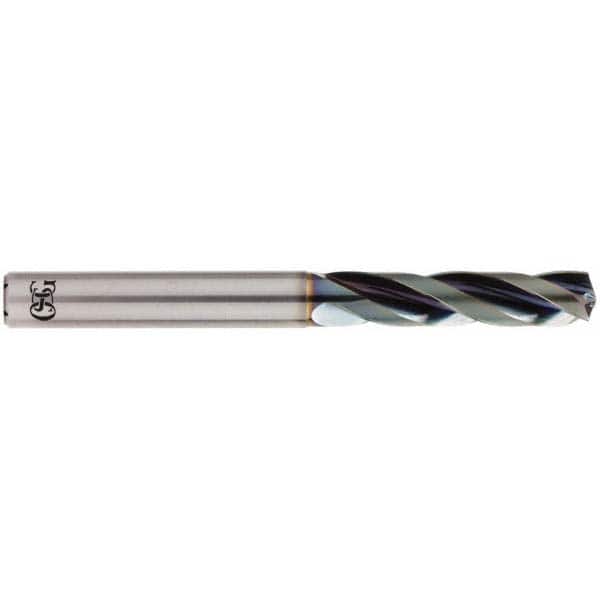

OSG - 8.3mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 55469779
Brand: OSG
Model #: 8660830
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
WD1 is a multi-layer coating that is harder and more resistant to heat than TiAIN. It is commonly used on medium-to high-carbon steel and other difficult-to-machine materials. WD1 is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3268 |
| Drill Bit Size (mm) | 8.30 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | WD1 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 42.00 |
| Overall Length (mm) | 101.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 9.00 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.022 |
| Drill Tip Finish/Coating | None |
| Web Thinning | R-Thinned |
| Series/List | 5600 |
| Length Type | Stub |
