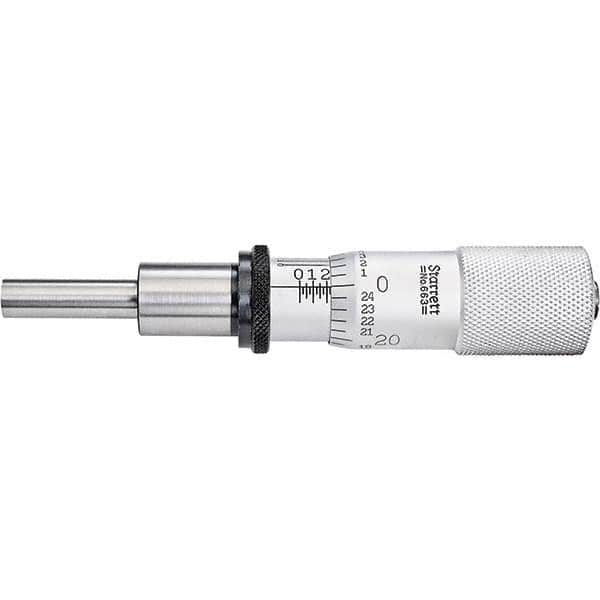

Starrett - 1 Inch, 13/16 Inch Plain Thimble, 0.3 Inch Diameter x 1-1/4 Inch Long Spindle, Mechanical Micrometer Head
Item #: 58704974
Brand: Starrett
Model #: 52777
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Maximum Measurement (Inch) | 1 |
| Thimble Diameter (mm) | 20.64 |
| Thimble Diameter (Inch) | 13/16 |
| Thimble Diameter (Decimal Inch) | 0.8125 |
| Digital Counter | No |
| Spindle Diameter (mm) | 7.62 |
| Spindle Diameter (Decimal Inch) | 0.3000 |
| Spindle Length (mm) | 31.75 |
| Spindle Length (Inch) | 1-1/4 |
| Spindle Length (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 116.29 |
| Overall Length (Inch) | 4-37/64 |
| Overall Length (Decimal Inch) | 4.5781 |
| Graduation (Decimal Inch) | 0.0001 |
| Stem Diameter (Decimal Inch) | 0.5625 |
| Stem Diameter (mm) | 14.29 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (Decimal Inch) | 0.000100 |
| Thimble Type | Plain |
| Stem Length (mm) | 19.05 |
| Stem Length (Inch) | 3/4 |
| Stem Length (Decimal Inch) | 0.7500 |
| Reverse Reading | No |
| Collar Diameter (Inch) | 13/16 |
| Collar Diameter (Decimal Inch) | 0.8125 |
| Clamp Nut Supplied | Yes |
| Measuring Face Material | Steel |
| Finish/Coating | Satin Chrome |
| Number of Extension Rods | 0 |
