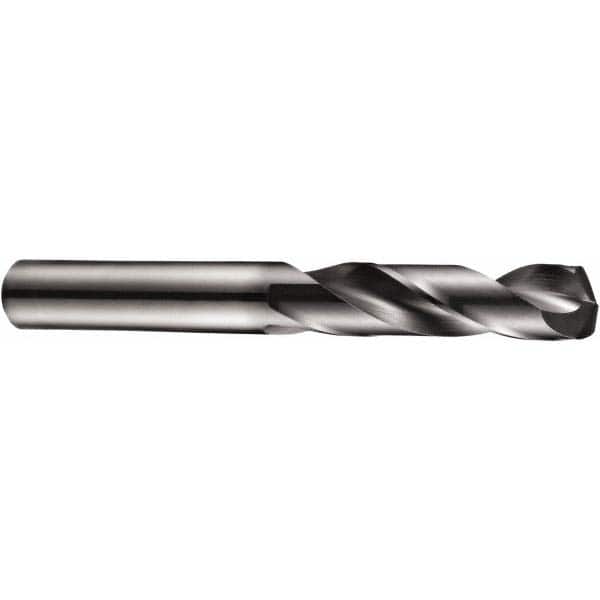

DORMER - 13.8mm 140° Solid Carbide Screw Machine Drill Bit
Item #: 65689465
Brand: DORMER
Model #: 0135198
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5433 |
| Drill Bit Size (mm) | 13.80 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 2.3640 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2158 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Four Facet, Split Point |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5516 |
| Specification Designation | DIN |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7730 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Specification Number | DIN 6535HA; DIN 6537K |
| Web Thinning | Web-Thinned |
| Series/List | R458 |
| Length Type | Stub |
