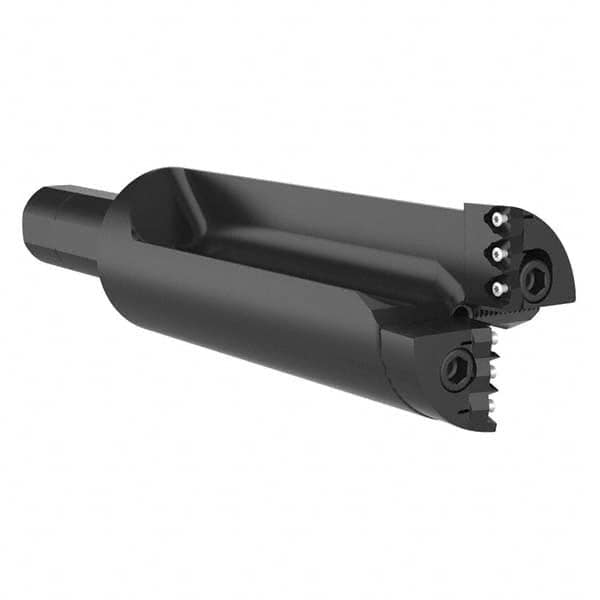

Allied Machine and Engineering - 6-3/4" Max Drill Depth, 2.2xD, 71.1mm Diam, Indexable Insert Drill
Item #: 32786758
Brand: Allied Machine and Engineering
Model #: SP46X22-150L
| Product Specifications | |
|---|---|
| Drill Style | SP46 |
| Drill Diameter (mm) | 71.10 |
| Drill Diameter (Decimal Inch) | 2.8000 |
| Maximum Drill Depth (Inch) | 6-3/4 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.0000 |
| Maximum Drill Diameter (mm) | 76.20 |
| Overall Length/Projection (Inch) | 12-3/64 |
| Insert Compatibility | OP-05T308 |
| Body Length (Decimal Inch) | 8.0469 |
| Shank Length (Decimal Inch) | 4.0000 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
