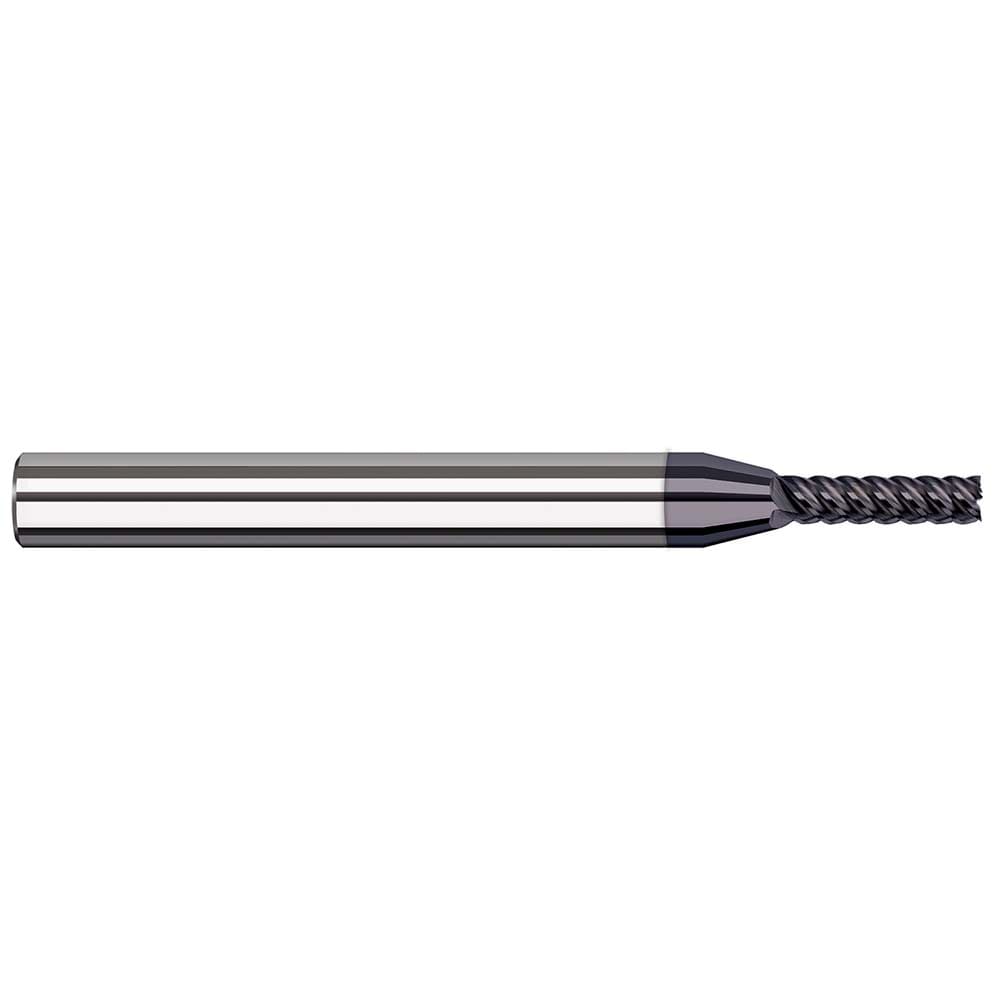

Square End Mill: 3/16" Dia, 3/4" LOC, 7 Flute, Solid Carbide
Item #: 16950230
Brand: Harvey Tool
Model #: 890212-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 41 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; K; M |
| Coating/Finish | AlTiN |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Series | Variable Helix End Mills for High Temp Alloys - Finishers - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
