Iscar - 10.01mm Min Bore Diam, 51.99mm OAL, 8mm Shank Diam, IHAXF Indexable Boring Bar - TPGX 73.. Insert - Benchmark Tooling

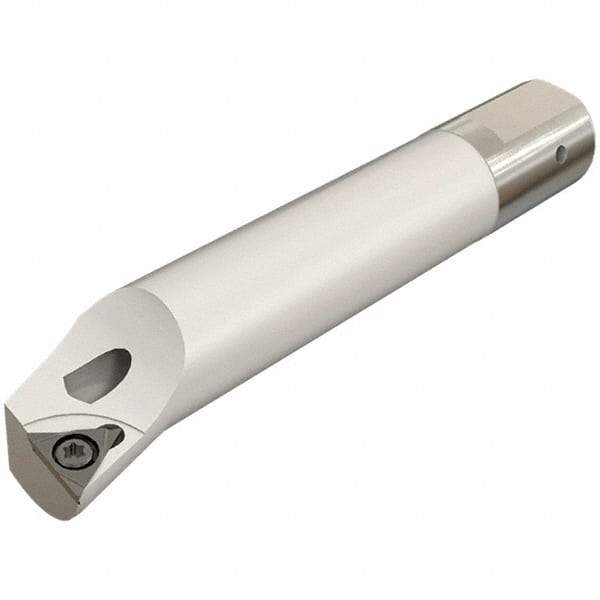

Iscar - 10.01mm Min Bore Diam, 51.99mm OAL, 8mm Shank Diam, IHAXF Indexable Boring Bar - TPGX 73.. Insert


Item #: 00905810
Brand: Iscar
Model #: 4550703
Exact Tooling IR#: 04

Product Specifications
Toolholder Style IHAXF
Series Itsbore
Minimum Bore Diameter (mm) 10.01
Minimum Bore Diameter (Decimal Inch) 0.3940
Overall Length (mm) 51.99
Overall Length (Decimal Inch) 2.0470
Shank Diameter (mm) 8.00
Shank Diameter (Decimal Inch) 0.3150
Insert Compatibility TPGX 73..
Through Coolant Yes
Multi-Use Tool No
Rake Positive
Lead Angle 3
Maximum Bore Diameter (mm) 11.99
Maximum Bore Diameter (Decimal Inch) 0.4720
Rake Angle 3 (Axial), 6 (Radial)
Complete Insert Compatibility TPGX 730; TPGX 730-L; TPGX 730T; TPGX 731; TPGX 731-L; TPGX 731T
$156.42
