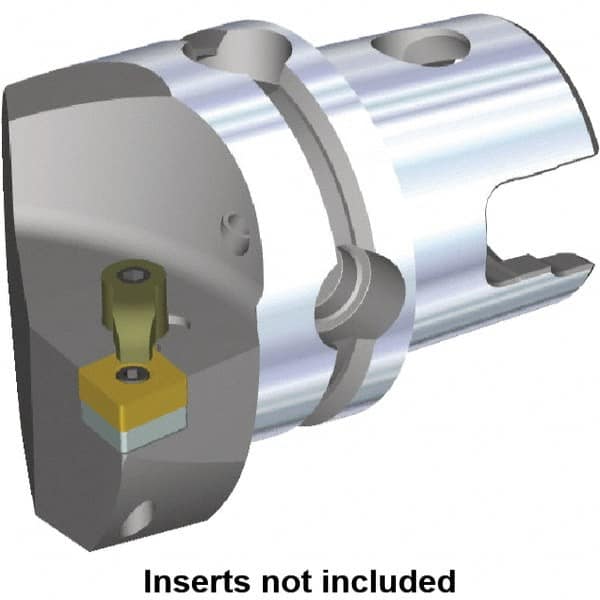

Kennametal - Right Hand Cut, Size KM50, CN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series M-Clamping
Item #: 00744581
Brand: Kennametal
Model #: 3738165
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | M-Clamping |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Insert Style | CN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 90.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.5433 |
| Complete Insert Compatibility | CN..543; CN..160612 |
