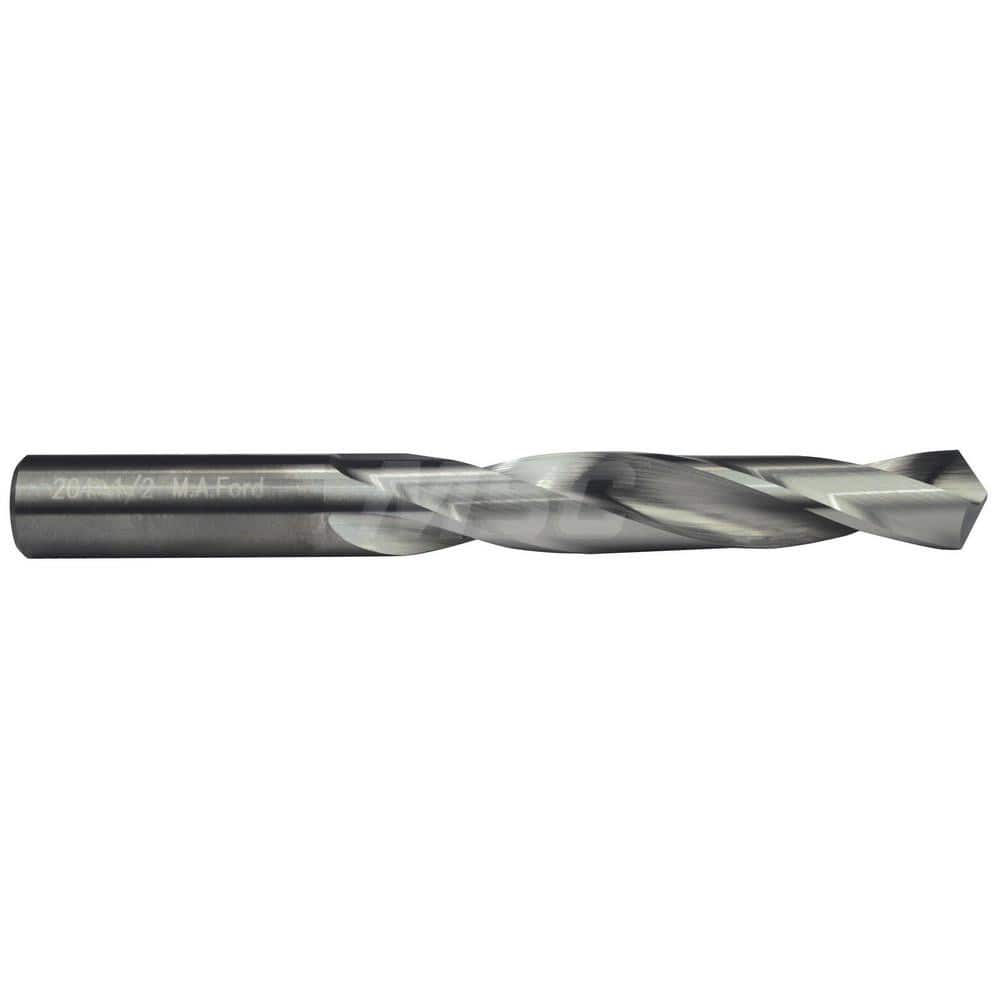

Jobber Length Drill Bit: 0.7344″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 204
Item #: 00656462
Brand: M.A. Ford?
Model #: 20473440
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7344 |
| Drill Bit Size (Inch) | 47/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 3-7/8 |
| Overall Length (Inch) | 5-3/4 |
| Series | 204 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 47/64 |
| Drill Bit Diameter Tolerance | -0.013 to 0.000 mm; -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | ISO 9001:2015 Certified |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
