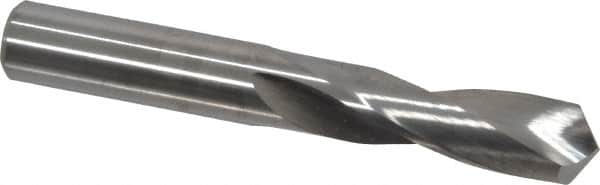

M.A. Ford - 0.348" 118° Spiral Flute Solid Carbide Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 1-1/4" Flute Length, 2-1/2" OAL, Faceted Point, Straight Shank
Item #: 00655381
Brand: M.A. Ford
Model #: 20634800
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3480 |
| Drill Bit Size (Letter) | S |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-1/4 |
| Overall Length (Inch) | 2-1/2 |
| Point Type | Faceted |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Web Thinning | Web-Thinned |
| Series/List | 206 |
