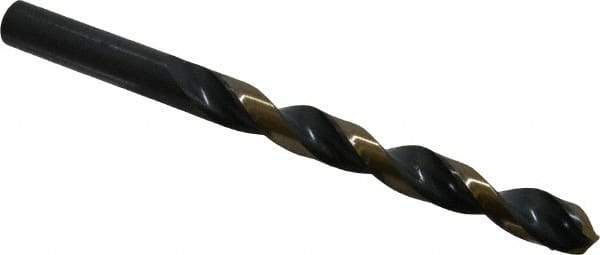

Triumph Twist Drill - 25/64" 135° High Speed Steel Jobber Drill - Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-1/8" OAL, Split Point
Item #: 00647446
Brand: Triumph Twist Drill
Model #: 012525
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide/gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 25/64 |
| Drill Bit Size (Decimal Inch) | 0.3906 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-3/4 |
| Overall Length (Inch) | 5-1/8 |
| Point Type | Split Point |
| Shank Diameter (Inch) | 25/64 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M7 |
| Series/List | T1HD |
