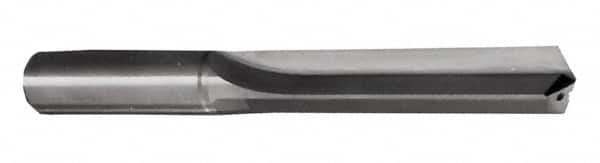

Die Drill Bit: 0.4409″ Dia, 130 °, Solid Carbide Bright Finish, Series 238
Item #: 00627745
Brand: Kennametal
Model #: 1198652
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 11.20 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (mm) | 71.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 118.00 |
| Shank Diameter (mm) | 12.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.4409 |
| Series | 238 |
| Number Of Flutes | 2 |
| Point Type | Faceted |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm; +0.0000 to +0.0005 in |
| Primary Workpiece Material | Cast Iron; Aluminum Alloy |
| Secondary Workpiece Material | Cast Iron; Aluminum Alloy |
| Maximum Drilling Depth (mm) | 56.00 |
| Specification Number | DIN 6539 |
