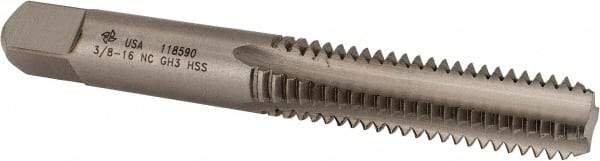

Made in USA - 3/8-16 UNC, H3, 4 Flute, Bright Finish, High Speed Steel, Straight Flute Standard Hand Tap - Bottoming Chamfer, Right Hand Thread, 2-15/16" OAL, 1-1/4" Thread Length, 0.381" Diam, Class 3B
Item #: 00575142
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 3/8-16 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-15/16 |
| Oversize | No |
| Thread Length (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (Inch) | 7/16 |
| Square Size (Decimal Inch) | 0.2860 |
