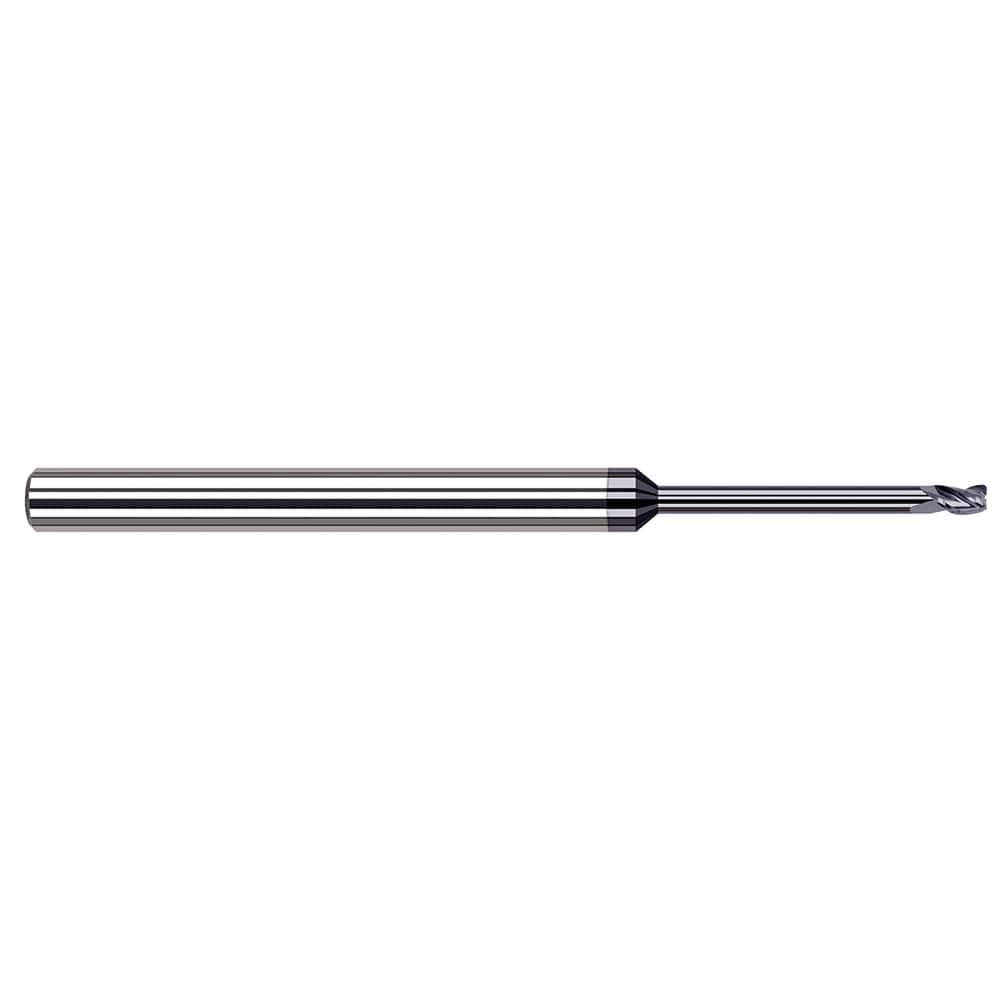

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0600 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano
Item #: 00527044
Brand: Harvey Tool
Model #: 932560-C6
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0600 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano
| Mill Diameter (Decimal Inch) | 0.0600 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Decimal Inch) | 0.0900 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Reach Length (Inch) | 5/8 |
| Reach Length (Decimal Inch) | 0.6250 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for High Temp Alloys - Corner Radius - Long Reach, Stub Flute |
