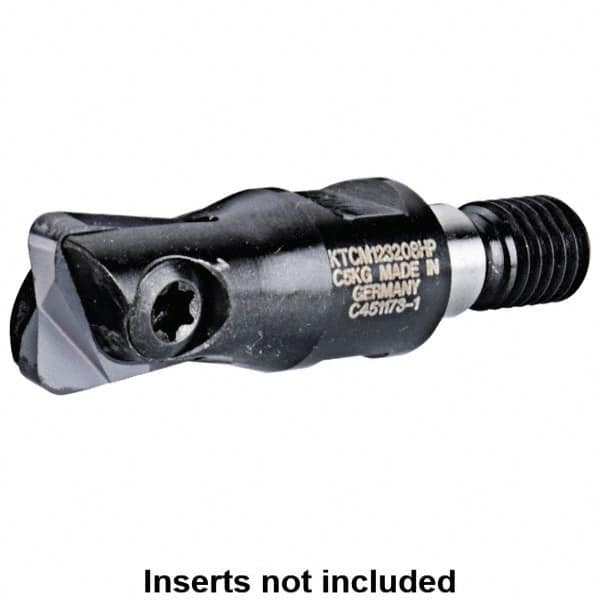

Kennametal - 20mm Cut Diam, 5mm Max Depth of Cut, 35mm OAL, Indexable Ball Nose End Mill - 35mm Head Length, M10 Modular Connection, KDMT Toolholder, KDM 20.. Insert
Item #: 00514414
Brand: Kennametal
Model #: 1918667
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDM 20.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 35.00 |
| Overall Length (Decimal Inch) | 1.3780 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Maximum RPM | 40000 |
