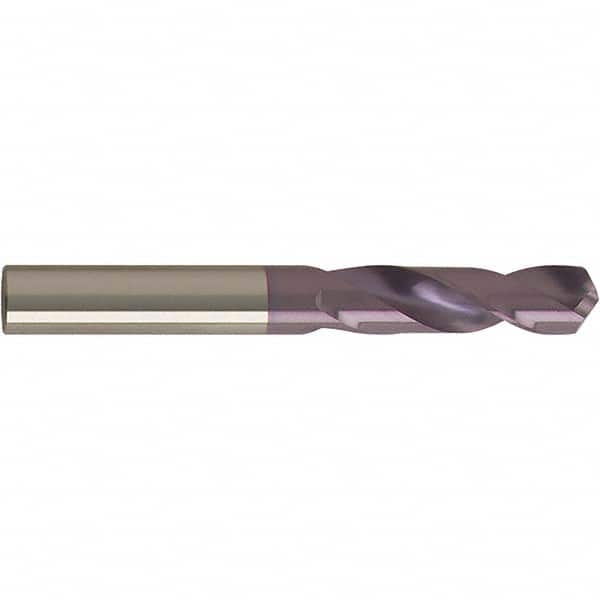

Guhring - 0.1142" 118° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 07673296
Brand: Guhring
Model #: 9024630029000
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1142 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | FIREX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 16.00 |
| Overall Length (mm) | 46.00 |
| Shank Diameter (Decimal Inch) | 0.1142 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.010 |
| Specification Number | DIN 6539 |
| Web Thinning | Web-Thinned |
| Material Grade | Submicron |
| Series/List | 2463 |
