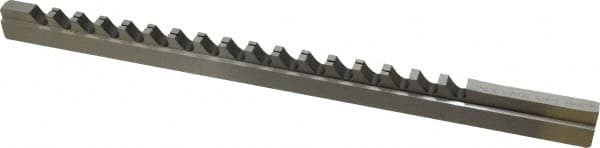

Dumont Minute Man - 3/8" Keyway Width, Style D, Keyway Broach - High Speed Steel, Bright Finish, 9/16" Broach Body Width, 1" to 6" LOC, 13-7/8" OAL, 7,000 Lbs Pressure for Max LOC
Item #: 00309336
Brand: Dumont Minute Man
Model #: 22213
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 3/8 |
| Broach Style | D |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Broach Body Width (Inch) | 9/16 |
| Minimum Length of Cut (Inch) | 1 |
| Maximum Length of Cut (Inch) | 6 |
| Overall Length (Inch) | 13-7/8 |
| Minimum Keyway Width Tolerance (Decimal Inch) | 0.3755 |
| Maximum Keyway Width Tolerance (Decimal Inch) | 0.3765 |
| Number of Shims Required | 2 |
| Pressure Required for Maximum Length of Cut (Lb.) | 7000 |
