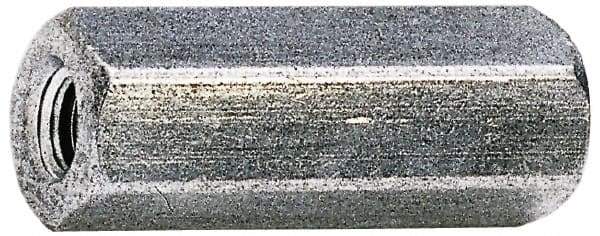

Electro Hardware - M3x0.50, 52mm OAL, 6mm Across Flats, Brass Hex Partially Threaded Female Circuit Board Standoffs - 6.4mm Thread Depth, 52mm Body Length, Zinc-Plated Finish
Item #: 00267518
Brand: Electro Hardware
Model #: MP1103M03F21M3
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with female threads are internally threaded to accept male fasteners or other standoffs. They are internally threaded on one end.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Thread Type | Female |
| Material | Brass |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 52.00 |
| Thread Style | Partially Threaded |
| Thread Size | M3x0.50 |
| Width Across Flats (mm) | 6.00 |
| Finish/Coating | Zinc-Plated |
| Body Length (mm) | 52.00 |
| Thread Depth (mm) | 6.40 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Fastener Standard | ASTM B633 Type 1; QQ-B-626 Comp 22 |
