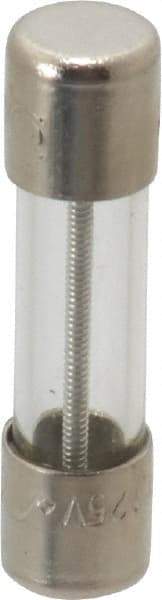

Ferraz Shawmut - 250 VAC, 1 Amp, Time Delay Miniature Glass Fuse - Clip Mount, 20mm OAL, 5mm Diam
Item #: 00176487
Brand: Ferraz Shawmut
Model #: GSC1-MSC
Exact Tooling IR#: 04
Features and Benefits
Miniature glassfuses are constructed of a conductive metal placed on a small glass body. Fuses with glass bodies are easier to see if they are blown. They are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Glass |
| Amperage | 1 |
| Voltage | 250 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 20 |
| Overall Diameter (mm) | 5.00 |
| Material | Glass |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (A) | 100 @ AC |
| Standards Met | CSA Certified; UL File E33925; UL Listed |
