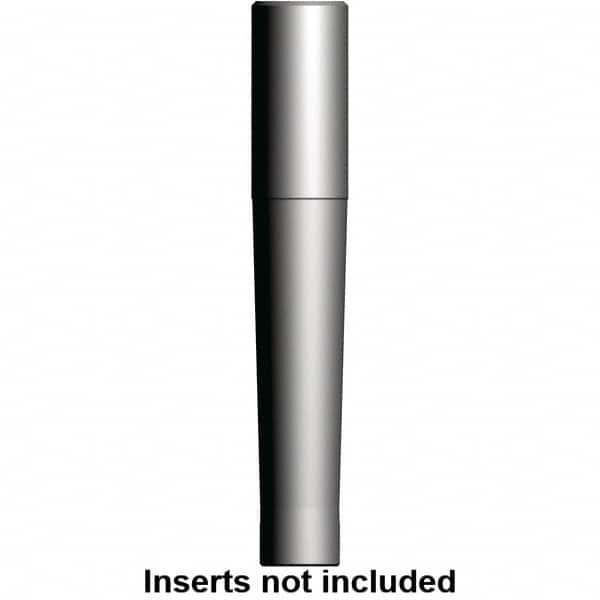

Kennametal - 5/8" Straight Shank Milling Tip Insert Holder & Shank - 4-3/4" Projection, 0.512" Neck Diam, M08 Neck Thread, 0.512" Nose Diam, 6.693" OAL, Tungsten Alloy M-13 Tool Holder
Item #: 00174771
Brand: Kennametal
Model #: 5672833
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | None |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.625 |
| Projection (Decimal Inch) | 4.7500 |
| Neck Diameter (Decimal Inch) | 0.5120 |
| Neck Thread Size | M08 |
| Nose Diameter (Decimal Inch) | 0.5120 |
| Toolholder Material | Tungsten Alloy |
| Overall Length (Decimal Inch) | 6.6930 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 4.7500 |
| Extension Length (Decimal Inch) | 4.7500 |
| Maximum Diameter (Decimal Inch) | 0.6250 |
| Shank Shape | Straight |
| Thread Size Connection to Shank | M08 |
| Toolholder Style | M-13 |
