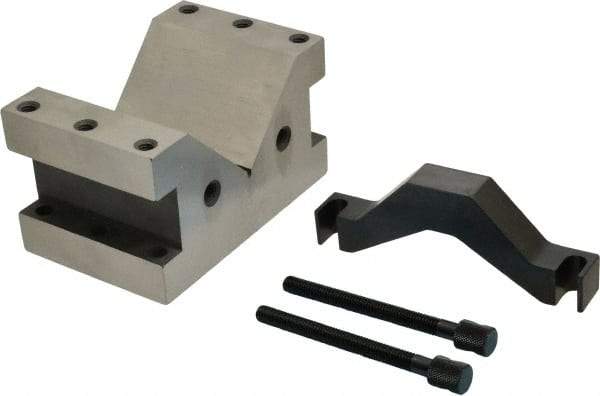

Starrett - 14.29 to 4" Capacity, 90° Angle, Hardened Steel V-Block - 3-3/8" Long x 5-1/4" Wide x 3" High, Sold as Individual
Item #: 00140079
Brand: Starrett
Model #: 64960
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 85.73 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Width (mm) | 133.35 |
| Overall Width (Inch) | 5-1/4 |
| Overall Width (Decimal Inch) | 5.2500 |
| Overall Height (mm) | 76.20 |
| Overall Height (Decimal Inch) | 3.0000 |
| Overall Height (Inch) | 3 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 14.29 |
| Minimum Capacity of V (Inch) | 9/16 |
| Maximum Capacity of V (mm) | 101.60 |
| Maximum Capacity of V (Inch) | 4 |
| Material | Hardened Steel |
| Magnetic | No |
| Includes | Clamp |
