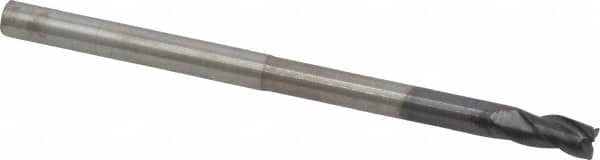

ProMax - 1/4" Diam 3 Flute Solid Carbide 0.02" Corner Radius End Mill
Item #: 00139972
Brand: ProMax
Model #: 106-01664
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 4 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 35.00 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (Inch) | 2-1/8 |
| Neck Diameter (Decimal Inch) | 0.2350 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | Yes |
| Series/List | 106 |
