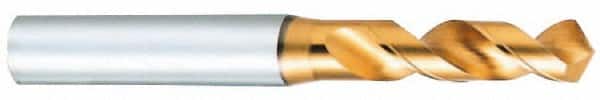

Screw Machine Length Drill Bit: 0.1504″ Dia, 130 °, Vanadium High Speed Steel TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1100
Item #: 00133900
Brand: OSG
Model #: 8595382
Product Specifications
| Tool Material | Vanadium High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 130 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Bit Size (Decimal Inch) | 0.1504 |
| Overall Length (mm) | 54.00 |
| Overall Length (Decimal Inch) | 2.1260 |
| Shank Diameter (mm) | 4.00 |
| Series | 1100 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Flute Length (mm) | 22.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
