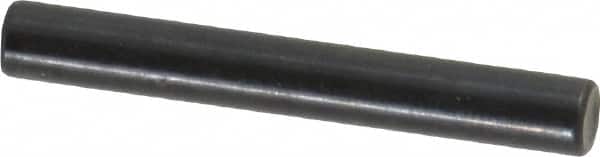

Holo-Krome - 4mm Diam x 30mm Pin Length Grade 8 Alloy Steel Standard Dowel Pin - Black Luster Finish, C 60 (Surface) & C 50-58 Hardness, 1 Beveled & 1 Rounded End
Item #: 00096487
Brand: Holo-Krome
Model #: 02025
Exact Tooling IR#: 04
Features and Benefits
Standard pull out styles are designed for easy removal when frequent reassembly is required. They have a smooth finish and are used in applications featuring a through-hole.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Type | Standard Pull Out |
| Material | Alloy Steel |
| Pin Diameter (mm) | 4.0 |
| Pin Length (mm) | 30.00 |
| Hardness | C 60 (Surface); C 50-58 |
| Fastener Standard | ASME B18.8.5M; DIN 6325 |
| Material Grade | Grade 8 |
| Finish/Coating | Black Luster |
| System of Measurement | Metric |
| End Type | (1) Beveled; (1) Rounded |
| Diameter Tolerance (Decimal Inch) | -0.0001 to 0.0001 |
